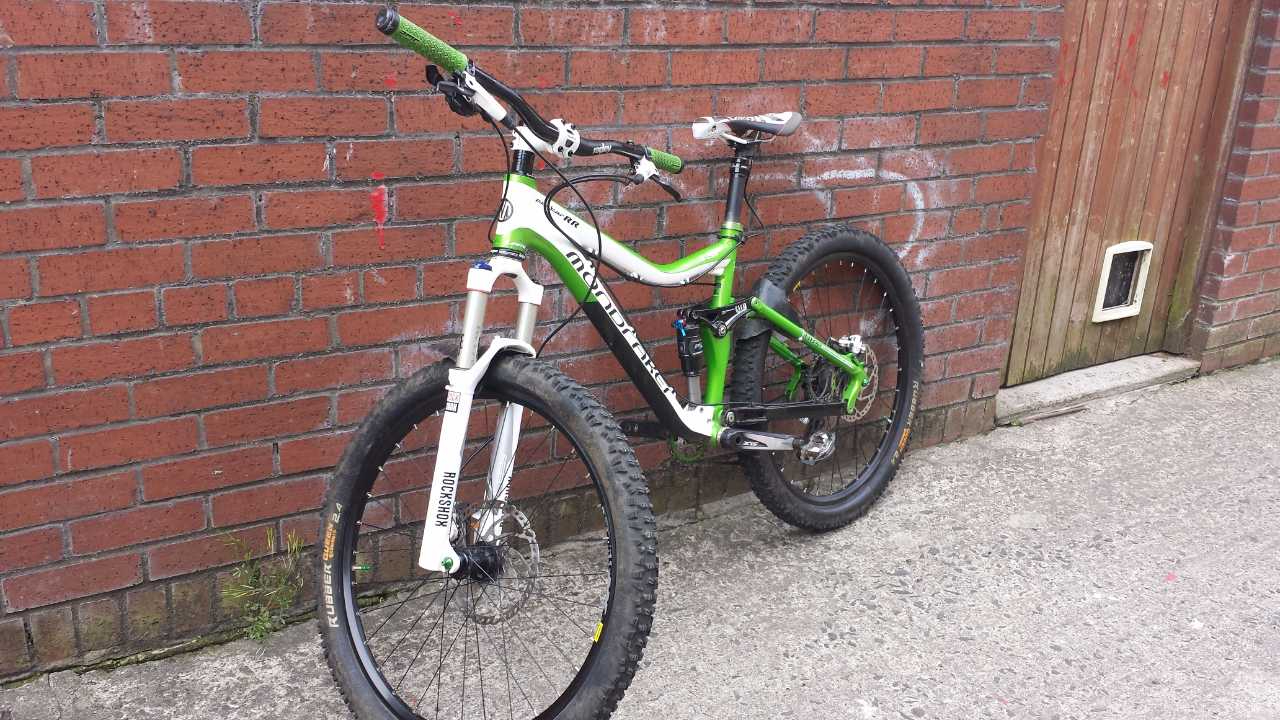

The Mondraker Factor RR Ltd has masses of standover clearance and a compact, well-proportioned rider cockpit that gives the Mondraker a confidence-inspiring feel. From the first turn of the pedals to the last yards of the ride, the Factor RR oozes the kind of willing can-do attitude that should make it an ideal trail companion.
Hydroformed tube profiles combined with smoothed welds at the head tube junction create a front triangle that’s almost monocoque in appearance, while the dropped top tube adds plenty of bail-out room for those moments of ineptitude.
The four-bar rear suspension design – with rocker-activated shock and chainstay pivots – is a tried and tested system that works well and isolates pedal and braking forces effectively. Mondraker’s combination of a low shock leverage ratio and dropped chainstay pivot makes for supple small bump response.
| Part | Specs |
|---|---|
| Frame | Aluminium 6061 Hydroformed DBA |
| Fork | Rockshox Reba SL Solo Air with lockout |
| Shock | Fox Float RP23 XV Boost Valve 190x50mm |
| Wheels | Formula 32 Hole Q/R Disc Hub Running on Mavic XM-317 Double Wall 32 Hole Disc Rims |
| Tyres | Continental Rubber Queens 26 x 2.4 Folding Bead |
| Bottom Bracket | Shimano Hollowtech II |
| Chainset | Shimano SLX M675 170mm (Superstar Components 32t Narrow Wide) |
| Rear Mech | SRAM X9 (10 Speed) |
| Rear Shifter | SRAM X9 (10 Speed) |
| Cassette | SRAM PG 1050 (12-42T with OneUp Expander Sprocket) |
| Chain | SRAM PC-1050 |
| Pedals | Shimano M530 Trail SPD |
| Bash Guard | Superstar Trident |
| Brakes | Avid Elixir 7 lever and calliper |
| Rotors | Shimano SLX RT66 203mm Front and 180mm Rear. |
| Headset | FSA 9 degrees ACB Bearings 1-1/8" | Bottom: Hope EC44/40 - Type H |
| Stem | Truvativ AKA 70mm |
| Handlebars | Ragley 760mm Wiser Riser 31.8mm with 25mm rise |
| Grips | DMR LOCDD Lockon Grips |
| Seat Collar | Superstar Components |
| Seatpost | Rockshox Reverb 350mm x 31.6mm with 100mm Travel |
| Saddle | Da Bomb - Da Skull 2.0 |
